product introduction

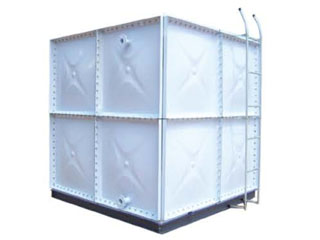

The plastic-sprayed steel plate water tank designed and invented by our company, the surface of which is specially treated by electrostatic spraying process, has high strength, color paint is not easy to fall off, corrosion-resistant, anti-aging, pollution-free, low cost, more environmentally friendly, and beautiful in appearance. Each side is connected by 12 screws, which increases the density between the screws and greatly reduces the chance of water tank leakage. The on-site assembly is light, flexible, easy to clean, completely blocks sunlight, does not breed algae, and keeps the water clean at all times . The water tank can store both cold water and hot water without seepage, leakage or deformation.
Electrostatic spraying process principle: use electrostatic powder spraying equipment (electrostatic spraying machine)
Spray the powder coating on the surface of the workpiece, under the action of static electricity, the powder will be evenly adsorbed on the surface of the workpiece to form a powdery coating; the powdery coating is baked at high temperature and leveled and solidified to become different effects (powder coating different kinds of effects) for the final coat. The product has been developed and applied for a long time, and the effect is good. As the product develops towards generalization, standardization and serialization, the product quality has a reliable guarantee. with enamel. Compared with the hot-dip galvanized steel water tank, the cost is lower and the service life is longer.
Selection instructions
1. When ordering, the size of the water tank, the position of the connection pipe and the size of the pipe diameter should be provided.
2. It is advisable to use the storage water temperature at 4-80°C. If the storage water temperature is higher than this value, it can be proposed when ordering, and it will be resolved separately.
3. The load of the water tank to the ground should be approved by the structural designer.
4. When the connection position of the water tank provided by the user is just at the seam of the board, the company needs to adjust it, and the pipe diameter remains unchanged.
Installation and acceptance
1. When installing, leave a maintenance channel of not less than 700 mm between the box body and the wall. The top of the box and the bottom of the box are not less than 500 mm.
2. During the civil construction, the buttresses should be prepared first, and the connection joints around the water tank and between the unit plates at the bottom of the tank should be located on the buttresses.
3. After assembly, close the outlet pipe and drain pipe, open the water inlet pipe, and check until it is full of water while draining the water. It is qualified if it does not leak for 24 hours.
Advantages of the second generation steel water tank
1. The enamel, hot-dip galvanized, and plastic-sprayed steel water tanks are all made of hot-rolled steel plates and assembled by one-time automatic pressing of single plates by a 1000T hydraulic press.
2. Light weight, strong corrosion resistance, impact resistance and shock resistance, and long service life.
3. Due to the design of the water tank plate in a "convex" shape, the water holding capacity of the water tank is 10% higher than that of the general water tank of the same size.
4. The number of connecting screws on each side of the water tank plate is increased from 10 to 12, which increases the density between the screws and greatly reduces the chance of water distribution from the water tank.
